Aluminium Sheets and Plates manufacturer in Saudi Arabia

Aluminium Sheets Dealer in Jeddah, Aluminium Hot Rolled (HR) Sheet & Plates Supplier in Jeddah, Al Sheets in Jeddah, Alumnium Alloy Plates Size Chart, Aluminium Sheet Price in Dammam, Alumnium Cold Rolled (CR) Sheet Supplier in Al jubail, Al Sheet Stockist in Ras Al Khair, Aluminium Sheets and Plates Exporter in Saudi Arabia, Al Sheet Stockist in Riyadh, Alumnium Alloy Plates Supplier in Ras Al Khair

Ayub Aluminium stands out as a top-notch manufacturer and supplier of premium Aluminium Sheets and Plates in Riyadh, Saudi Arabia. We cater to a wide range of industrial needs with precision and reliability. Our aluminium products are crafted using cutting-edge technology and adhere to strict quality standards, guaranteeing durability, strength, and resistance to corrosion. Known for their lightweight nature, excellent machinability, and versatility, our Aluminium Sheets and Plates are ideal for various industries. At Ayub Aluminium, we offer sheets and plates in different grades, sizes, and finishes, ensuring that our customers receive products that perfectly fit their specific application needs.

Our Aluminium Sheets and Plates are primarily made of aluminium, with varying amounts of elements like magnesium, manganese, silicon, copper, and zinc, depending on the grade. This blend provides a great balance of strength, corrosion resistance, and weldability. They boast impressive tensile strength ranging from 90 to 570 MPa, along with good elongation and toughness. Additionally, these sheets and plates feature high thermal and electrical conductivity, as well as remarkable resistance to oxidation. With a low density of 2.7 g/cm³, they offer an excellent strength-to-weight ratio, ensuring outstanding performance in structural and engineering applications.

Aluminium Alloy Sheets

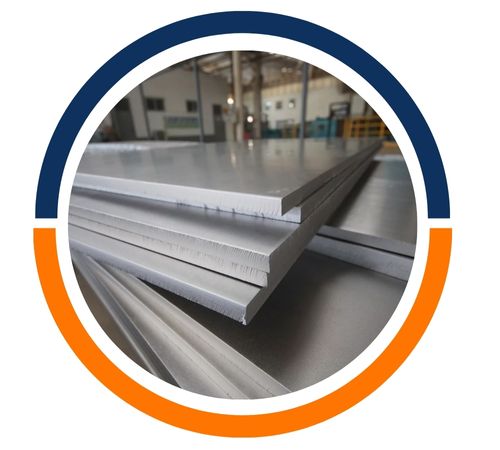

Aluminium Hot Rolled Sheets

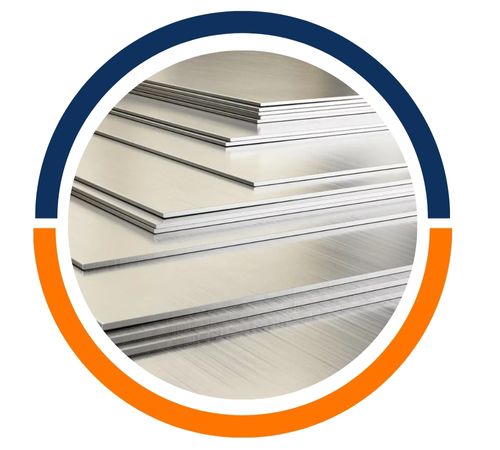

Aluminum Cold Rolled Sheets

Alumnium Clad Sheets Distributor in Saudi Arabia, Al Perforated Plates Supplier in Riyadh, Aluminium Alloy Sheet Weight Chart, Al Plates Exporter in Ras Al Khair, Aluminium Polished Sheets Manufacturer in Jeddah, Aluminium Shim Sheet and Plate Price List in Al jubail, Alumnium Chequered Plates Sizes in mm, Alumnium Alloy Hot Rolled Plate Distributor in Jeddah, Al Sheets and Plates Dammam

Specifications of Aluminium Sheets and Plates

Specifications	ASTM / ASME SB209
Size	1000 mm x 60610 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 60610 mm x 60610 mm, 60610 mm x 4000 mm
Finish	Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Thickness	0.1 to 12 mm Thk
Form	Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Blank (Circle), Ring (Flange)
Hardness	Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.

Chemical Compositions of Aluminium Sheets and Plates

Alloy	% Si	% Cu	% Fe	% Mg	% Mn	% Cr	% Zn	% Ti	% Others	% Al
EN AW-1050 A	0.25 Maximum	0.05 Maximum	0.40 Maximum	0.05 Maximum	0.05 Maximum		0.07 Maximum	0.05 Maximum		99.5 Min
EN AW-1070 A	0.20 Maximum	0.03 Maximum	0.25 Maximum	0.03 Maximum	0.03 Maximum		0.07 Maximumimum	0.03 Maximum		99.7 Min
EN AW-1100	Si+Fe 0.95 Maximum	0.05 – 0.20			0.05 Maximum		0.10 Maximum	0.05 Maximum		99.0 Min
EN AW-2011	0.40 Max	5.00 – 6.00	0.70 Max				0.30 Max		Bi : 0.20 – 0.60 Pb : 0.20 – 0.60	Remainder
EN AW-2014	0.50 – 1.20	3.90 – 5.00	0.70 Max	0.20 – 0.80	0.40 – 1.20	0.10 Max	0.25 Max	0.15 Max		Remainder
EN AW-2024	0.50 Max	3.80 – 4.90	0.50 Max	1.20 -1.80	0.30 – 0.90	0.10 Max	0.25 Max	0.15 Max	0.15 Max	Remainder
EN AW-3003	0.60 Max	0.05 – 0.20	0.70 Max		1.00 – 1.50		0.10 Max		0.15 Max	Remainder
EN AW-3103	0.50 Maximum	0.10 Maximum	0.70 Maximum	0.30 Maximum	0.90 – 1.50	0.10 Maximum	0.20 Maximum	0.10 Maximum		Remainder
EN AW-6101A	0.30 – 0.7	0.05 Maximum	0.40 Maximum	0.40 – 0.90	0.03 Maximum				0.10 Maximum	Remainder
EN AW-6005	0.60 – 0.90	0.10 Max	0.35 Max	0.40 – 0.60	0.10 Max	0.10 Max	0.10 Max	0.10 Max		Remainder
EN AW-6351	0.70 – 1.30	0.10 Maximum	0.50 Maximum	0.40 – 0.80	0.40 – 0.80		0.20 Maximum	0.20 Maximum	0.15 Maximum	Remainder
EN AW-6060	0.30 – 0.60	0.10 Maximum	0.10 – 0.30	0.35 – 0.60	0.10 Maximum	0.05 Maximum	0.15 Maximum	0.10 Maximum		Remainder
EN AW-6061	0.40 – 0.80	0.15 – 0.40	0.70 Max	0.80 – 1.20	0.15 Max	0.04 – 0.35	0.25 Max	0.15 Max		Remainder
EN AW-6063	0.20 – 0.60	0.10 Max	0.35 Max	0.45 – 0.90	0.10 Max	0.10 Max	0.10 Max	0.10 Max		Remainder
EN AW-6082	0.70 – 1.30	0.10 Max	0.50 Max	0.60 -1.20	0.40 – 1.00	0.25 Max	0.20 Max	0.10 Max		Remainder

Mechanical Properties of Aluminium Sheets and Plates

Alloy	Temper	Yield Strength (Mpa)		UTS (Mpa)		Elongation (%)
		Minimum	Maximum	Minimum	Maximum	A 50mm (Minimum)
EN AW-1050 A Sheet	F	20		60		23
EN AW-1050 A Sheet	O	20		60	95	23
EN AW-1070 A	F	20		60		23
EN AW-1100	O			75	110	25
EN AW-2011 Sheet	T4	125		275		12
EN AW-2011 Sheet	T6	230		310		6
EN AW-2014	O		135		250	10
	T4	230		370		11
	T6	370		415		5
EN AW-2024 Perforated Sheet	O		150		250	10
	T3,T3510,T3511	290		395		6
	T8,T8510,T8511	380		455		4
EN AW-3003 Mesh Sheet	F	35		95		20
EN AW-3003 Mesh Sheet	O	35		95	135	20
EN AW-3103 Sheets	F	35		95		20
EN AW-3103 Sheets	O	35		95	135	20
EN AW-6101A Shim Sheet	T6	170		200		8
EN AW-6005 Sheet	T4	90		180		13
EN AW-6005 Sheet	T6	225		270		6
EN AW-6351 Sheet	O		110		160	12
	T4	110		205		12
	T6	250		290		6
EN AW-6060	T4	60	14	120		12
	T5	120		160		6
	T6	150		190		6
	T64	120		180		10
	T66	160		215		6
EN AW-6061	O		110		150	14
	T4	110		180		13
	T6	240		260		6
EN AW-6063	O				130	16
	T4	65		130		12
	T5	130		175		6
	T6	170		215		6
	T66	200		245		6
EN AW-6082	O		110		160	12
	T4	110		205		12
	T5	230		270		6
	T6	250		290		6

Get a Customized Quote for High-Quality Aluminium Products Tailored to Your Needs!

Types of Aluminium Sheets and Plates

Largest Aluminium Sheets and Plates Manufacturer and Exporter in Riyadh, Saudi Arabia

Ayub Aluminium based in Riyadh, Saudi Arabia is a renowned manufacturer and supplier of premium aluminium products, including Aluminium Bars, Sheets and Plates, Coils, Chequered Plates, Wires, Pipes, Fittings, Flanges, Forging, Circle, Angles. With a commitment to delivering exceptional quality and service, we cater to diverse industries, offering reliable solutions tailored to specific requirements. Our products are known for their superior strength, corrosion resistance, and precise dimensions. We focus on customer satisfaction by providing an extensive range of aluminium bars designed for structural, industrial, and decorative applications.

Equivalent Grades of Aluminium Sheets and Plates

STANDARD	WERKSTOFF NR.	UNS
Aluminium	3.1254	A96082

Modern Equipments

Expert Engineers

Well Maintained

Efficient Factories

Sizes Chart Of Aluminium Sheets and Plates

AL Sheet Size (In Inches)		Roofing Sheet Size (In milimeter)
.125″	.875″	3.18	22.2
.134″	1″	3.40	25.4
.156″	1.125″	3.96	28.6
.187″	1.250″	4.75	31.8
.250″	1.500″	6.35	38.1
.312″	1.750″	7.92	44.5
.375″	2″	9.53	50.8
.500″	2.500″	12.7	63.5
.625″	3″	15.9	76.2
.750″		19.1

Are Custom Sizes Available For Aluminium Sheets and Plates?

Yes, we offer custom sizes for Aluminium Sheets and Plates to meet specific project needs. Our team at Ayub Aluminium is committed to providing customized solutions for all your requirements. For more details, contact us at sales@ayubaluminium.com

Uses of Aluminium Sheets and Plates

Aluminium Sheets and Plates are incredibly popular across various industries thanks to their flexibility and performance. In construction, you’ll find them used in roofing, cladding, curtain walls, and facades. The automotive and aerospace sectors depend on these materials for lightweight structural components, panels, and body parts. When it comes to marine applications, aluminium plates are prized for their ability to resist saltwater corrosion. They’re also essential in making appliances, packaging, shipbuilding, transportation, and industrial machinery. Plus, Aluminium Sheets and Plates are crucial in electrical applications, signage, furniture, and decorative finishes, showcasing just how versatile and important they really are.
