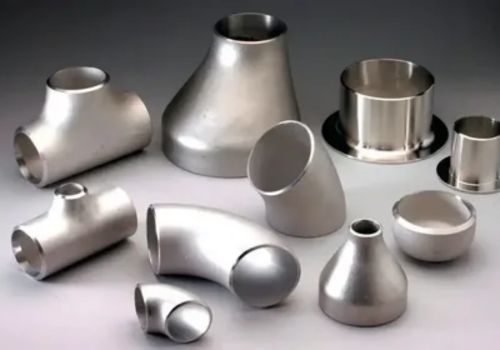

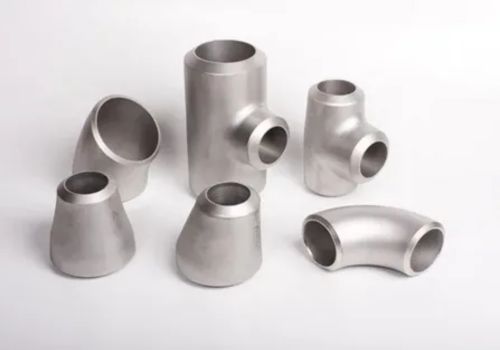

Ayub Aluminium stands out as a trusted manufacturer and supplier of Aluminium 7075 Fittings in Riyadh, Saudi Arabia. They provide high-strength, precision-engineered components that cater to industries demanding top-notch mechanical performance. These fittings are crafted to handle the tough requirements of aerospace, defense, marine, and high-performance automotive sectors. Using premium-grade 7075 aluminium alloy and cutting-edge machining techniques, Ayub Aluminium guarantees that every fitting boasts dimensional accuracy, durability, and reliability. With a variety of configurations available—like elbows, tees, reducers, couplings, and even custom shapes—these fittings are perfect for applications where lightweight materials need to endure high stress, pressure, and fatigue over time.
Aluminium 7075 Fittings are made from a robust aluminium-zinc alloy, featuring key alloying elements such as magnesium, copper, and chromium. This unique blend provides impressive mechanical properties, including tensile strength reaching up to 570 MPa and remarkable fatigue resistance. These fittings are known for their good machinability and are usually supplied in heat-treated forms like T6 or T651, which enhance their hardness and stability. While 7075 has moderate corrosion resistance compared to other grades, it can be surface treated or anodized for better protection. The high strength-to-weight ratio of 7075 makes these fittings a go-to choice for structural and high-pressure applications where performance is crucial.
Standards : ASTM B361, B361
Dimensions : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Size : 1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated)
Bending Radius : R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Thickness : Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS
| UNS | USA | BS(OLD) | Germany | Canada | ISO |
| A97075 | 7075 | DTD 5124 | AlZnMgCu1.5 | 75S | AlZn6MgCu |
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Each | Total | ||||||||||
| Aluminium 7075 | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| – | 0.40 | – | 0.50 | 1.20 | 2.00 | – | 0.30 | 2.10 | 2.90 | 0.18 | 0.28 | 5.10 | 6.10 | – | 0.20 | – | 0.05 | – | 0.15 | |
| Standard | Temper | Tensile | Hardness | ||||
| Aluminium 7075 | Ultimate | Yield | Elongation | Brinell | |||
| T6, T651, T6511 | KSI | MPA | KSI | MPA | % | ||
| 83 | 572 | 73 | 503 | 11 | 150 | ||
| 73 | 503 | 63 | 434 | 13 | N/A | ||
Ayub Aluminium based in Riyadh, Saudi Arabia is a renowned manufacturer and supplier of premium aluminium products, including Aluminium Bars, Sheets and Plates, Coils, Chequered Plates, Wires, Pipes, Fittings, Flanges, Forging, Circle, Angles. With a commitment to delivering exceptional quality and service, we cater to diverse industries, offering reliable solutions tailored to specific requirements. Our products are known for their superior strength, corrosion resistance, and precise dimensions. We focus on customer satisfaction by providing an extensive range of aluminium bars designed for structural, industrial, and decorative applications.
Yes, we offer custom sizes for Aluminium 7075 Fittings to meet specific project needs. Our team at Ayub Aluminium is committed to providing customized solutions for all your requirements. For more details, contact us at sales@ayubaluminium.com
Aluminium 7075 Fittings find their place in various industries where strength, fatigue resistance, and weight savings are vital. In aerospace, they’re utilized in hydraulic systems, structural joints, and fuel line connectors. The automotive and motorsport sectors rely on these fittings for performance exhaust systems, suspension assemblies, and fluid transfer components. In defense, they play a role in aircraft frames, armored vehicles, and tactical gear. The marine and industrial sectors also reap the benefits of these fittings, using them in lightweight yet strong piping and structural systems.
