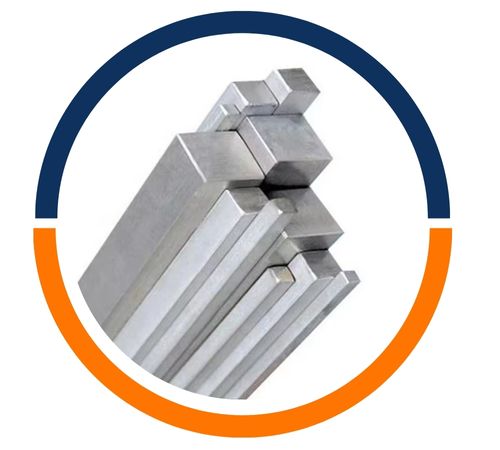

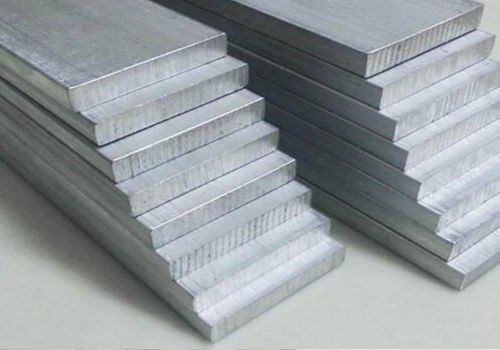

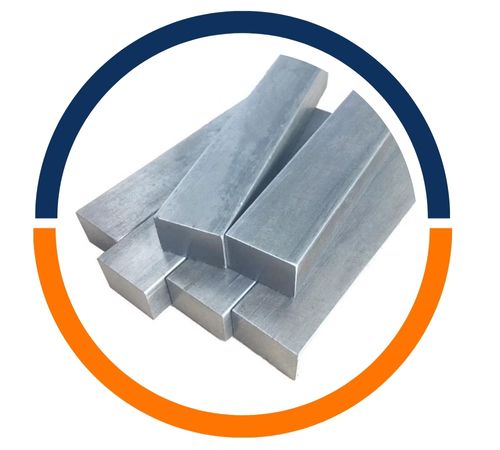

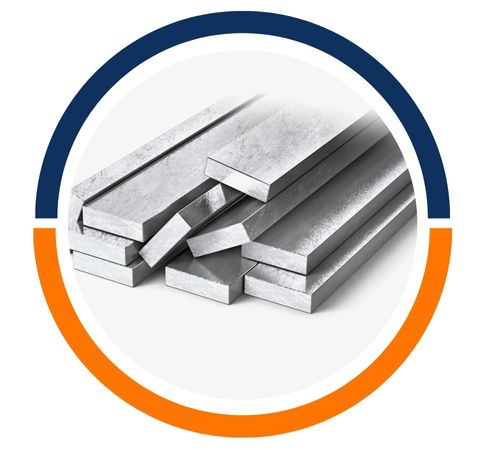

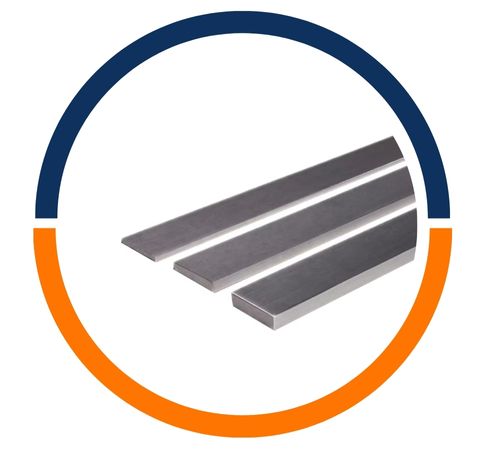

Ayub Aluminium stands out as a top-notch manufacturer and supplier of Aluminium 7075 Flat Bars, proudly based in Riyadh, Saudi Arabia. They cater to high-performance sectors like aerospace, automotive, defense, and precision engineering. Renowned for their strength, reliability, and precise dimensions, Ayub Aluminium’s 7075 flat bars are crafted using cutting-edge extrusion and processing technologies. You can find these bars in a variety of sizes and tempers, including T6 and T651, tailored to meet both standard and custom specifications. With a strong commitment to quality and timely delivery, Ayub Aluminium guarantees that every product meets international standards, making them ready for even the most demanding structural and mechanical applications.
Aluminium 7075 Flat Bars are primarily made from an aluminium alloy mixed with zinc, magnesium, copper, and chromium. This high-strength alloy boasts a tensile strength of up to 570 MPa and exceptional fatigue resistance, making it perfect for critical load-bearing tasks. While these bars offer good machinability and dimensional stability, their corrosion resistance isn’t as high as some other aluminium grades. However, applying protective surface treatments like anodizing can enhance their durability. The flat shape of these bars allows for easy fabrication and even stress distribution, making them ideal for precision structural components in high-performance settings.
Standards : ASTM B221, B211, B565, B316, AMS 4121 7075
Temper : T3,T4,T5, T6, T651 T6511
Standard : ASTM, ASME, AMS, GB/T, JIS
Length : 100 mm To 3000 mm Long & Above, Random, Fix & Cut Length or as per clients’ requirement
Size : 5 mm To 500 mm
Finish : Bright, Polish & Black
Type : Hot-Rolled (HR) / Cold-Rolled (CR) Sheet
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Each | Total | ||||||||||
| Aluminium 7075 | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| – | 0.40 | – | 0.50 | 1.20 | 2.00 | – | 0.30 | 2.10 | 2.90 | 0.18 | 0.28 | 5.10 | 6.10 | – | 0.20 | – | 0.05 | – | 0.15 | |
| Standard | Temper | Tensile | Hardness | ||||
| Aluminium 7075 | Ultimate | Yield | Elongation | Brinell | |||
| T6, T651, T6511 | KSI | MPA | KSI | MPA | % | ||
| 83 | 572 | 73 | 503 | 11 | 150 | ||
| 73 | 503 | 63 | 434 | 13 | N/A | ||
| European Standard | GERMANY | UNS | WERKSTOFF NR. |
| EN AW-7075 | AlZnMgCu1.5 | A97075 | 3.4365 |
Ayub Aluminium based in Riyadh, Saudi Arabia is a renowned manufacturer and supplier of premium aluminium products, including Aluminium Bars, Sheets and Plates, Coils, Chequered Plates, Wires, Pipes, Fittings, Flanges, Forging, Circle, Angles. With a commitment to delivering exceptional quality and service, we cater to diverse industries, offering reliable solutions tailored to specific requirements. Our products are known for their superior strength, corrosion resistance, and precise dimensions. We focus on customer satisfaction by providing an extensive range of aluminium bars designed for structural, industrial, and decorative applications.
Yes, we offer custom sizes for Aluminium 7075 Flat Bars to meet specific project needs. Our team at Ayub Aluminium is committed to providing customized solutions for all your requirements. For more details, contact us at sales@ayubaluminium.com
You’ll find Aluminium 7075 Flat Bars in applications that demand high strength, low weight, and outstanding fatigue resistance. In the aerospace industry, they’re used for wing spars, fuselage frames, and landing gear components. In automotive and motorsports, they play a role in suspension systems, chassis parts, and high-performance engine components. The defense sector relies on them for military-grade equipment, firearm parts, and structural armor. Plus, these bars are perfect for marine hardware, robotics, tooling plates, and precision-machined components. Their impressive strength-to-weight ratio and machinability make Aluminium 7075 Flat Bars the go-to choice for many applications.
